How to Operate the Classroom Thermostat

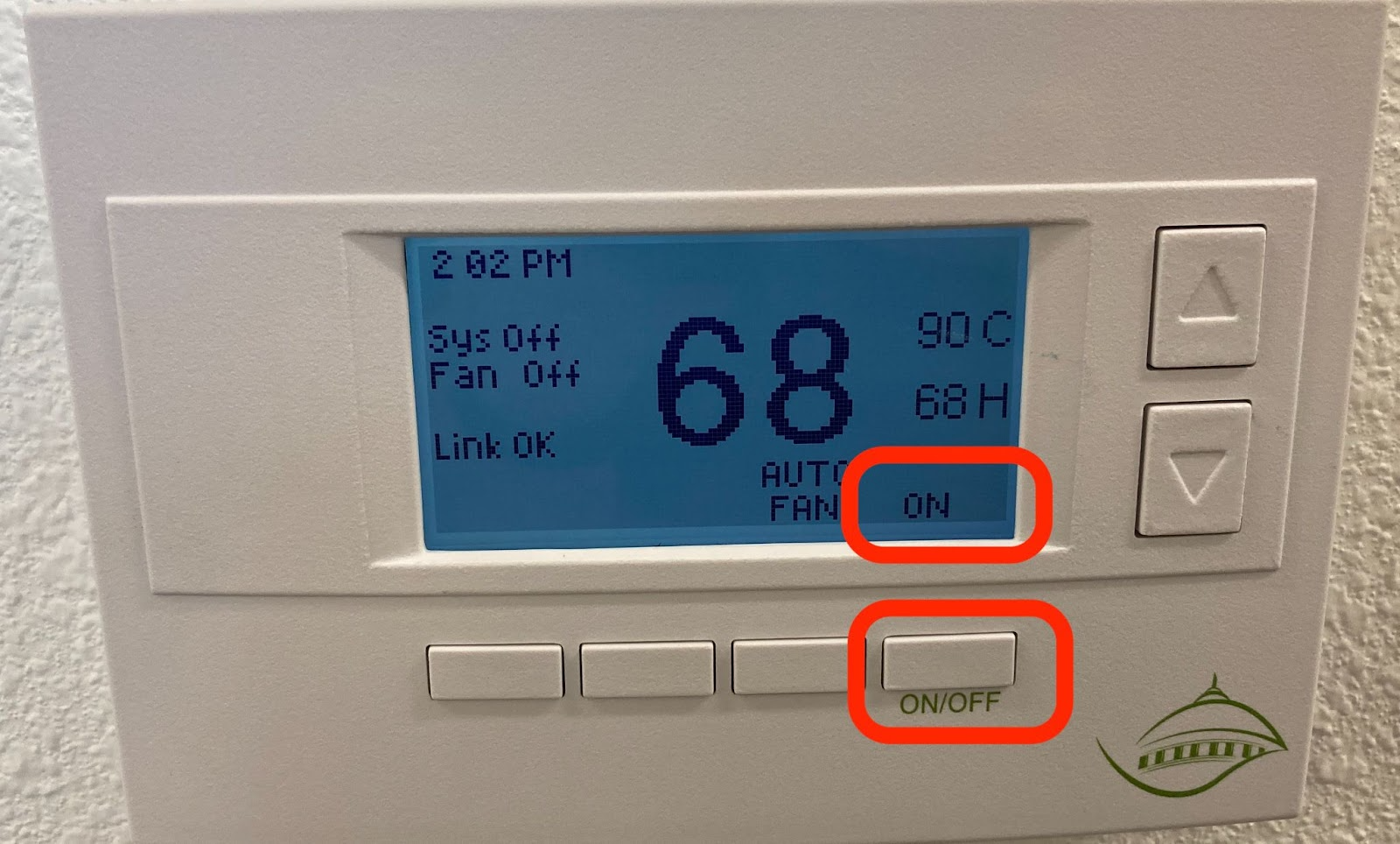

  1. Turn On the System
    Press the ON/OFF button until the screen displays "ON" at the bottom right.

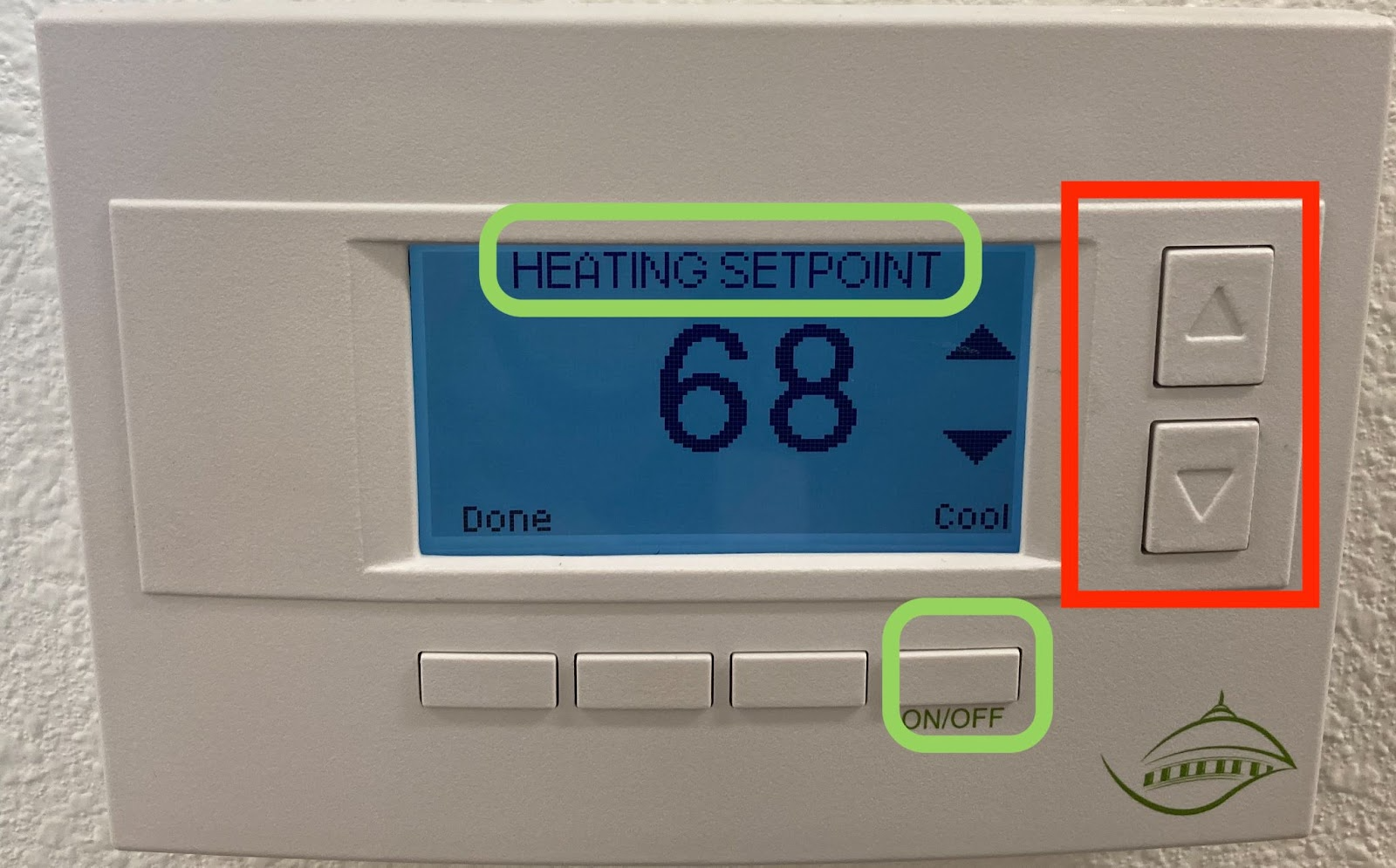

  2. Bring up the Setpoint Menu Screen
    Press either Up or Down arrows to display the Setpoint Menu Screen.

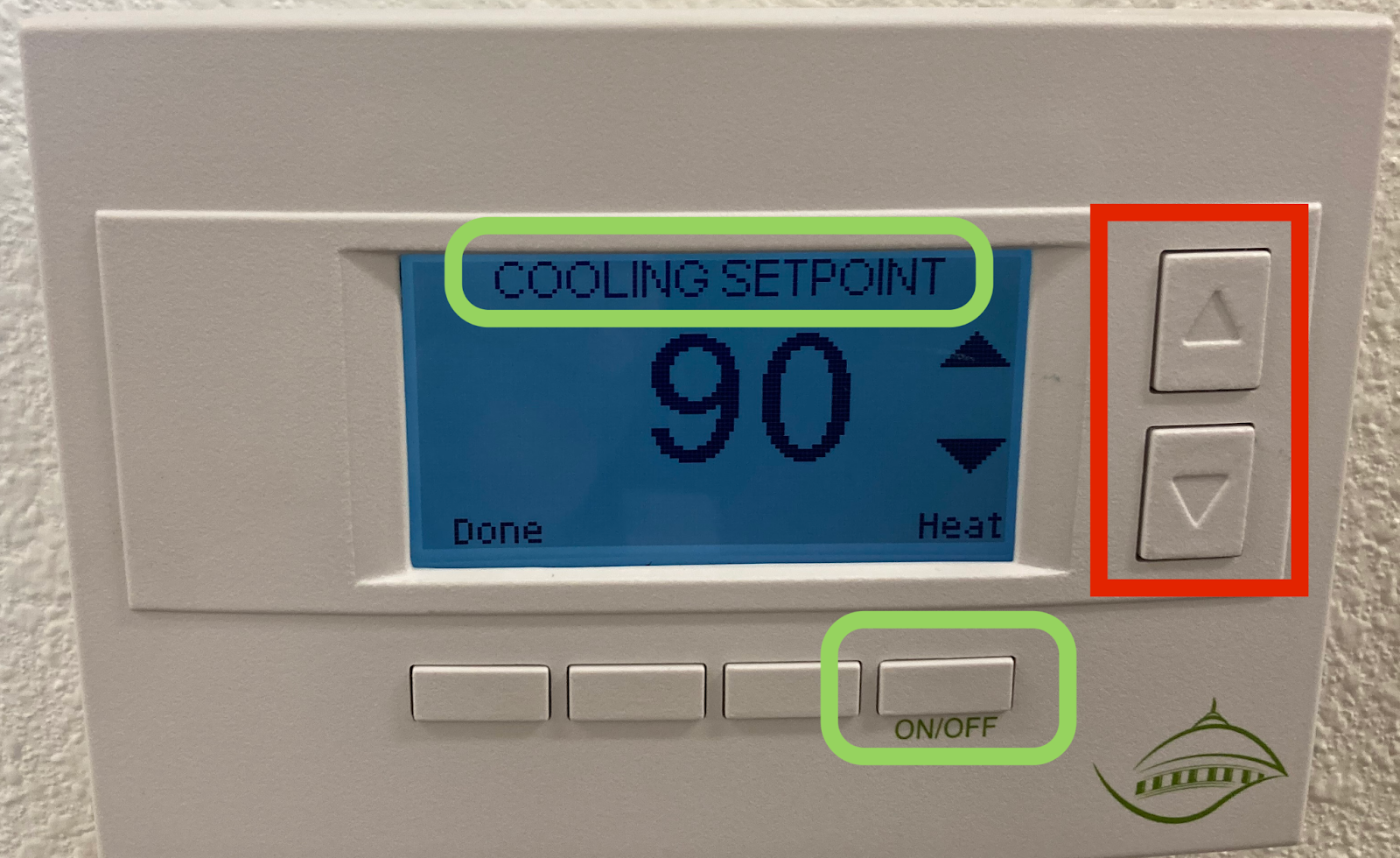

  3. Select Mode
    Use the ON/OFF button to toggle between modes. The current mode will be shown at the top of the screen:

    • HEATING for Heater

    • COOLING for A/C



  1. Set the Temperature
    While in the desired mode, use the Up and Down arrows to adjust the temperature.

  2. Confirm Your Settings
    After setting your desired temperature, press the Done button at the bottom left to confirm.

    After confirming the Settings It may take 5 - 10 minutes for the system to turn on.
